Pressure Transmitter

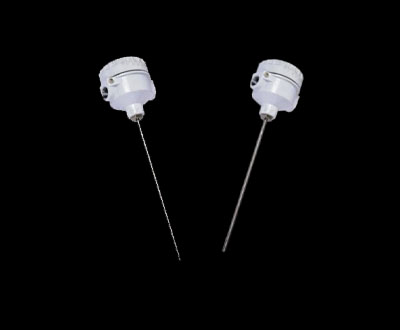

RTD Temperature Sensor
- Simplex & Duplex sensor transmitters available
- Available in all ranges
- Accuracy class A, B
- Flameproof head available

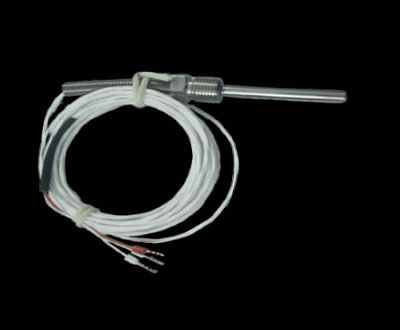

Thermocouple Temperature Sensor
- Simplex & Duplex sensor transmitters available
- Available in all ranges
- Accuracy class A, B
- J, K, R type available

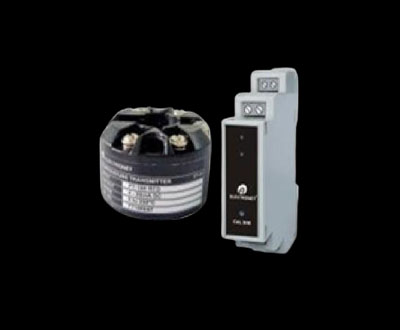

Head Mounted Transmitter
- Rail/Head Mounted transmitter
- 2 wire system available
- Output: 4-20 mA DC
- Cold junction compensation for Thermocouple Input
- Type of Input: RTD, Thermocouple, Resistance, Millivolt

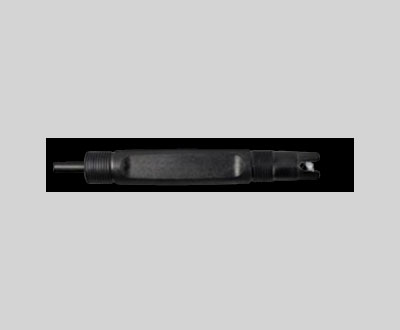

PH sensor
- Technical Parameters
- Measuring range: 0–14
- Zero point: 7.00 ± 0.25
- Temperature range: 0–80°C
- Temperature Sensor: –
- Pressure range: 0–0.3 MPa
- Reference system: Ag/AgCl/KCl
- Membrane resistance: <500 MΩ
- Connection thread: NPT 3/4"
- Connection method: Standard configuration 10M
- Installation method: Submerged type, pipeline type, flow
Chlorine Sensor
- Measuring Material: Double platinum ring / 3 electrodes
- Shell Material: Glass + POM
- Waterproof Grade: IP68
- Measuring Range: 0–2 mg/L | 0–10 mg/L | 0–20 mg/L
- Measurement Accuracy: ±1% F.S.
- Pressure Range: ≤0.3 MPa
- Temperature Compensation: NTC10K
- Temperature Range: 0–80°C
- Calibration Methods:
- Sample calibration
- Chlorine-free water calibration
- Comparison calibration
- Connection Method: 4-core cable
- Cable Length: Standard 10 m (optional up to 100 m)
- Installation Thread: PG13.5
- Scope of Application: Tap water, swimming pool water, etc.

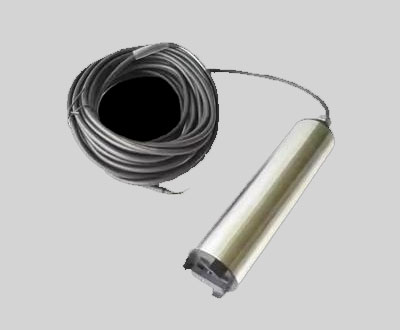

❖ Turbidity Sensor
- Power Outlet: 9~36 VDC / RS485 MODBUS RTU
- Measurement Mode: 135° IR scattered light method
- Dimensions: Diameter 50 mm × Length 223 mm
- Housing Material: PVC + 316 Stainless Steel
- Waterproof Rating: IP68
- Measurement Range: 10–4000 NTU
- Measurement Lower Limit: 20 NTU
- Measurement Accuracy: < 5% of measured value
- Pressure Resistance: 0.3 MPa
- Measuring Temperature: 0–45°C
- Calibration Methods:
- Standard liquid calibration
- Water sample calibration
- Cable Length: Default 10 m, extendable up to 100 m
- Thread: 1 inch tail thread
- Application: General applications, rivers, lakes, environmental protection, etc.
