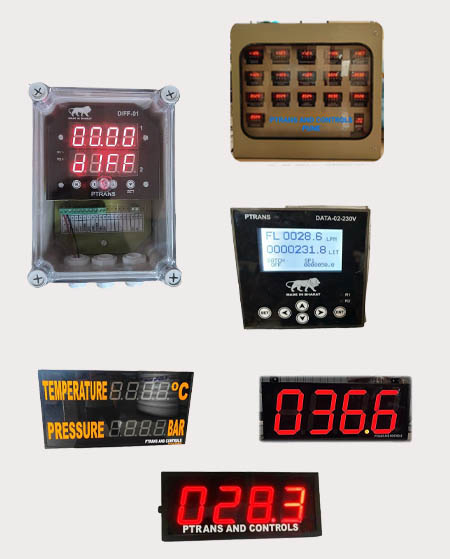

Indicators and Controllers
- Input: 4–20 mA / RTD PT100 / Thermocouple / 0–10 V (As
per requirement)
- Control: ON/OFF
- Supply: 24 V DC / 230 V AC 50/60 Hz (As per
requirement)
- Display: Seven segment 4-digit (2 nos) / LCD (16×2) (As
per requirement)
- Output: 4–20 mA, Relay 1, Relay 2 (As per requirement)
- Transmitter Supply: 24 V DC @ 50 mA (For 2-wire
transmitters)
- Communication: RS485 RTU MODBUS / RS232 / Any (As per
requirement)
- Size: Panel Mounted
- Bezel: 96 × 96 × 80 mm
- Cutout: 92 × 92 × 80 mm
- Wall Mounted (ABS Box): 180 × 180 × 100 mm or 180 × 130
× 100 mm
- Jumbo Displays: Seven segment 4-digit or as per
requirement, available in sizes 2”, 4”, 6”, 8”, 12” etc.
- Dot Matrix Display: P10 Module, single or multicolor
- Mounting: Hanging / Wall
- Operating Temperature: 0–57°C
- Relative Humidity: 5–90% (non-condensing)
- Accuracy: 0.25% of FSD
