Pressure Transmitter

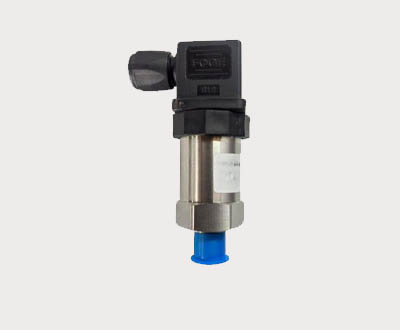

Pressure Transmitter
- 12 to 36 V DC Operated
- Piezo Resistive Sensor
- LED Display available optionally
- Available Outputs: 4 to 20mA DC, 0 to 10V
- Measurement Range: 1 to 700 Bar
- AP: From 5.801 to 300 psi & GP
- URL: From 1.16 to 10000 psi

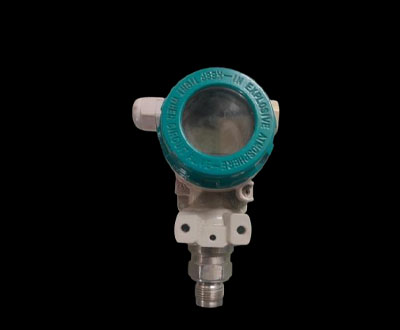

SMART PRESSURE TRANSMITTER
- Two Wire Loop Powered
- ATEX / SIL2 Certified
- Application flexibility with HART Communication
- Piezo Resistive & Capacitive Sensor
- Available Outputs: 4-20mA, 4-20mA with HART Communication
- Measurement Range: 1 to 700 Bar
- AP: From 5.801 to 300 psi & GP
- URL: From 1.16 to 10000 psi

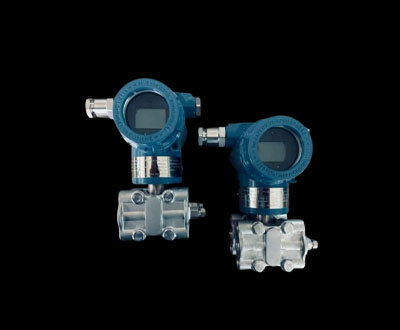

SMART DIFFERENTIAL PRESSURE TRANSMITTER
- Two Wire Loop Powered
- ATEX / SIL2 Certified
- Application flexibility with HART Communication
- Capacitive Sensor with Diaphragm
- Outputs: 4-20mA, 4-20mA with HART Communication
- Measurement Range: 0.1 psi to 1000 psi
