Level & Radar Transmitterss

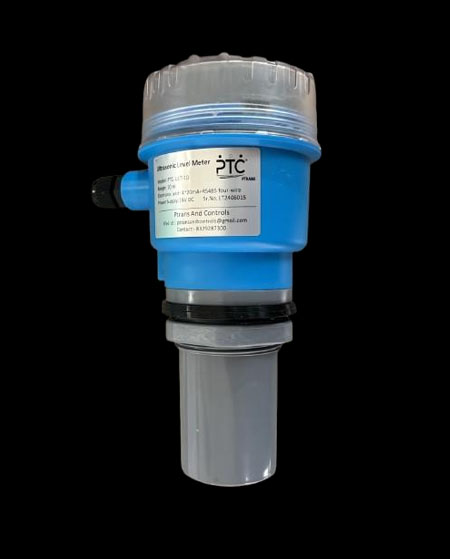

A. Ultrasonic Level Meter
❖ Technical Features
- Range Options: 2m, 5m, 8m, 10m, 12m, 15m, 20m, 30m
- Blind Zone: ＜0.25–1.5m depending on model
- Launch Angle: ＜12° depending on sensor type
- Resolution: 1 mm
- Operating Frequency: 20kHz – 2000kHz
- Measurement Error: 0.3% F.S
- Automatic Temperature Compensation
- Display Options: LED / LCD
- Power Supply: 12–24VDC or 220VAC
- Output (Optional): 4–20mA, 0–5V, 0–10V
- Digital Output: RS485 (Modbus Supported)
- Low Power Consumption: ＜1.5W
❖ Specifications
- Operating Voltage: DC18–28V
- Backup & Recovery for Parameter Settings
- Measurement Options: Level, Volume, Weight
- Adjustable Analog Output Range
- Digital Filtering & Echo Identification
- Onsite Anti-interference Shield
- Optional HART Communication
B. Radar Level Gauges for Multiple Applications
❖ Radar Level Transmitter Specifications
- Frequency Range: 76–81 GHz or 26 GHz
- Measuring Range: Up to 120m
- Process Connection: Flanges DN80–DN250
- Ambient Temperature: -40°C to 220°C
- Beam Angle: 3°
- Accuracy: ±1 mm
- Protection Level: IP68
- Explosion Proof: Ex d IIa IIC T6 Gb
- Housing Material: Aluminum Casting / Stainless Steel
- Output: 4–20mA / HART (2-wire/4-wire), RS485 / Modbus
- Variants: Anti-corrosion, Heat Dissipation Designs
