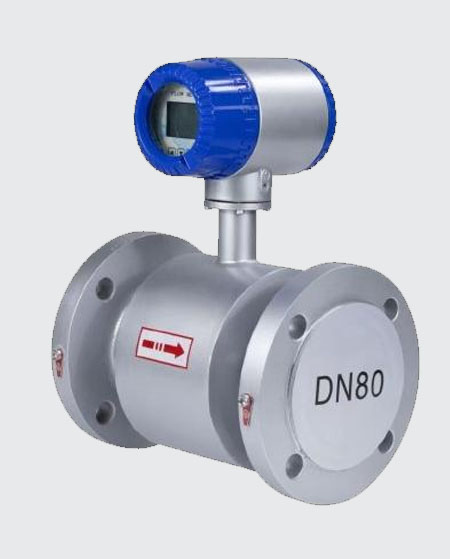

A. Electromagnetic Flow Meters / Battery Operated
Electromagnetic Flow Meters
❖ Product Features
- Measurement of flow rates of electrically conductive liquids such as
water
- Flanged and Wafer versions available
- No obstructions and no pressure drop during measurement
- Rubber / PTFE / Neoprene / Hard Rubber / Polyurethane lined sensors
- Graphical LCD backlit / 2-line LCD backlit display
- Excellent long-term accuracy
- Bi-directional flow measurement
- Empty pipe detection
- Selectable flow units
- Can be submerged in water or buried in ground
- Explosion-proof version available
❖ Applications
- Used for Water & Waste Water in closed pipe flow
❖ Specifications
- Power Supply: Universal 85-265 VAC, 45-65 Hz / 24 VDC
- Power Supply (Battery Operated): 3.6V Battery Pack
(Max. 5 years life)
- Measuring Range (Battery Operated): DN 15 - DN 1000
- Measuring Range: DN 15 - DN 3000
- Pressure: 6 / 10 / 16 kg/cm²
- Minimum Conductivity of Liquid: 5 µS/cm
- Electrode Material: SS 316 (Optional: SS 316L,
Hastelloy C, Titanium, or Tantalum)
- Output: Frequency, pulse, and current outputs
(Optional: RS 232, RS 485, HART, GSM / GPRS connectivity)
- Protection: Remote Sensor - IP 68, Remote Converter -
IP 67, Integral Sensor - IP 67

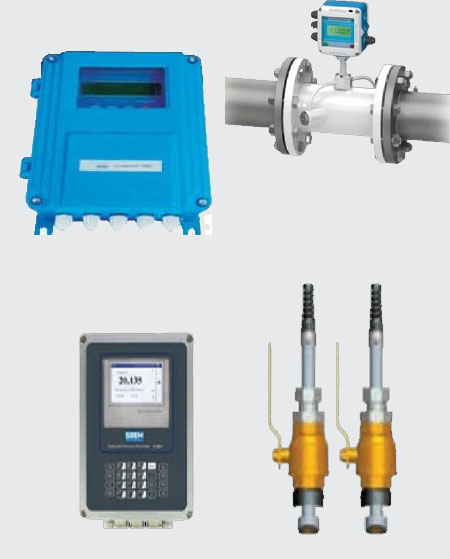

B. Ultrasonic Flow Meter
❖ Product Features
- Measurement & detection of volumetric flow rates of most Liquids
- Hand held (Portable) / Wall mounted converter
- Easy to install
- Measuring accuracy ±1%
- Wide range of pipe sizes 15 mm - 6000 mm
- Totalized Flow
- Multipath version for higher accuracy
- Clamp-on type Sensors / Insertion Sensors
❖ Applications
- Drinking water, raw water, wastewater
- Sewage / drainage water with < 2% of Total suspended solids
- Boiler feed water
- Pipeline leak detection
❖ Specifications
- Power Supply: 85 to 230 VAC / 24 VDC | 153UCH:
Rechargeable battery powered with 230VAC
- Measuring Range: 15 - 6000 mm pipe diameter
- Pressure: 10 kg/cm²
- Output (153UCW): 4-20 mA + Pulse + Relay
- Output (153UCW Extended): Temperature (Pt100) and
analog input for heat flow and pressure measurement
